How to add PDF annotations and drawings with MobiPDF on iOS

Use annotation and drawing markup tools to add comments and drawings.

You can use the drawing tool to add a rectangle, ellipse, or other shape and then type a message in the associated pop-up note.

To add a shape

1. Open a PDF.

2. On the toolbar, select a shape.

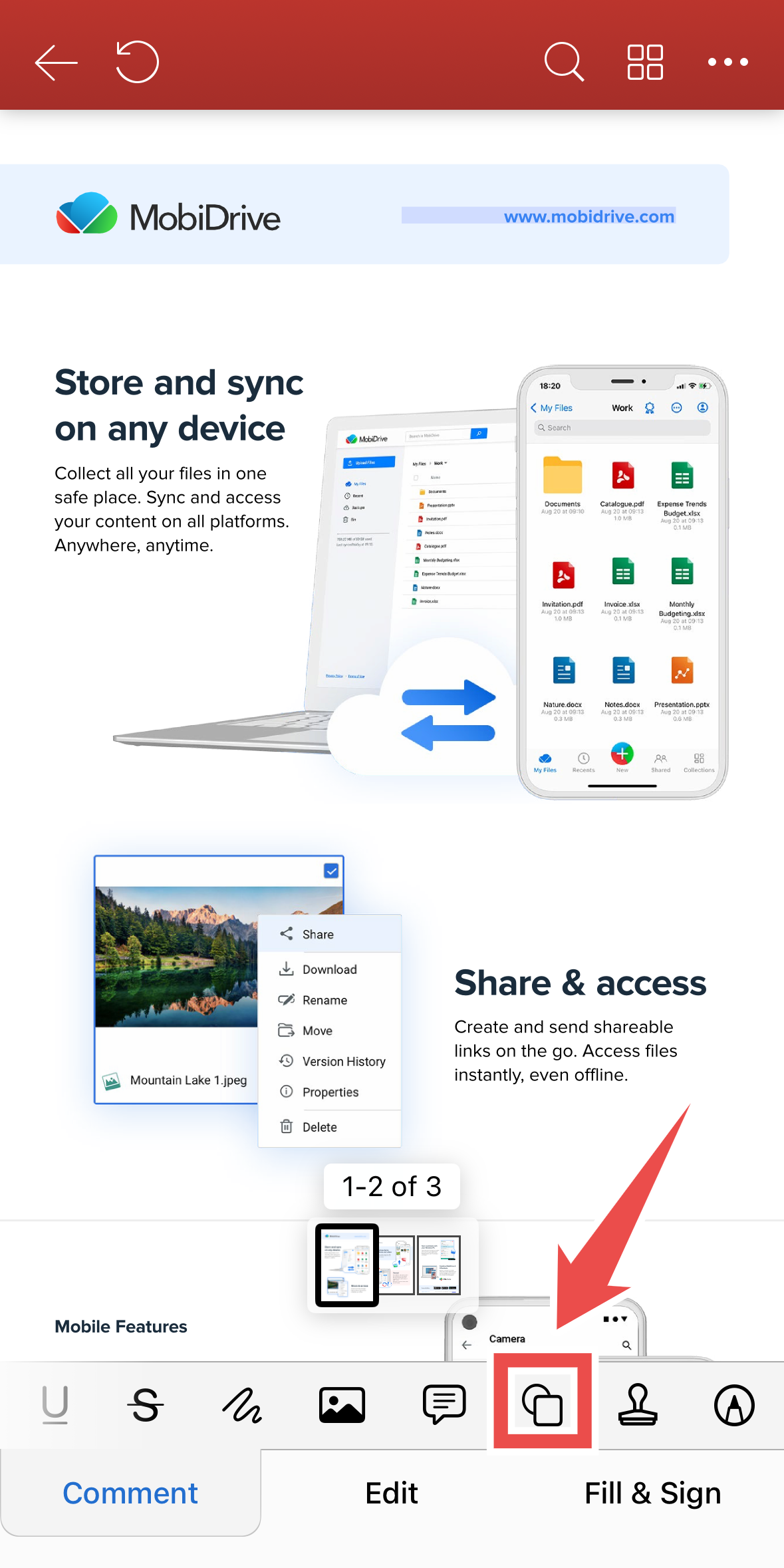

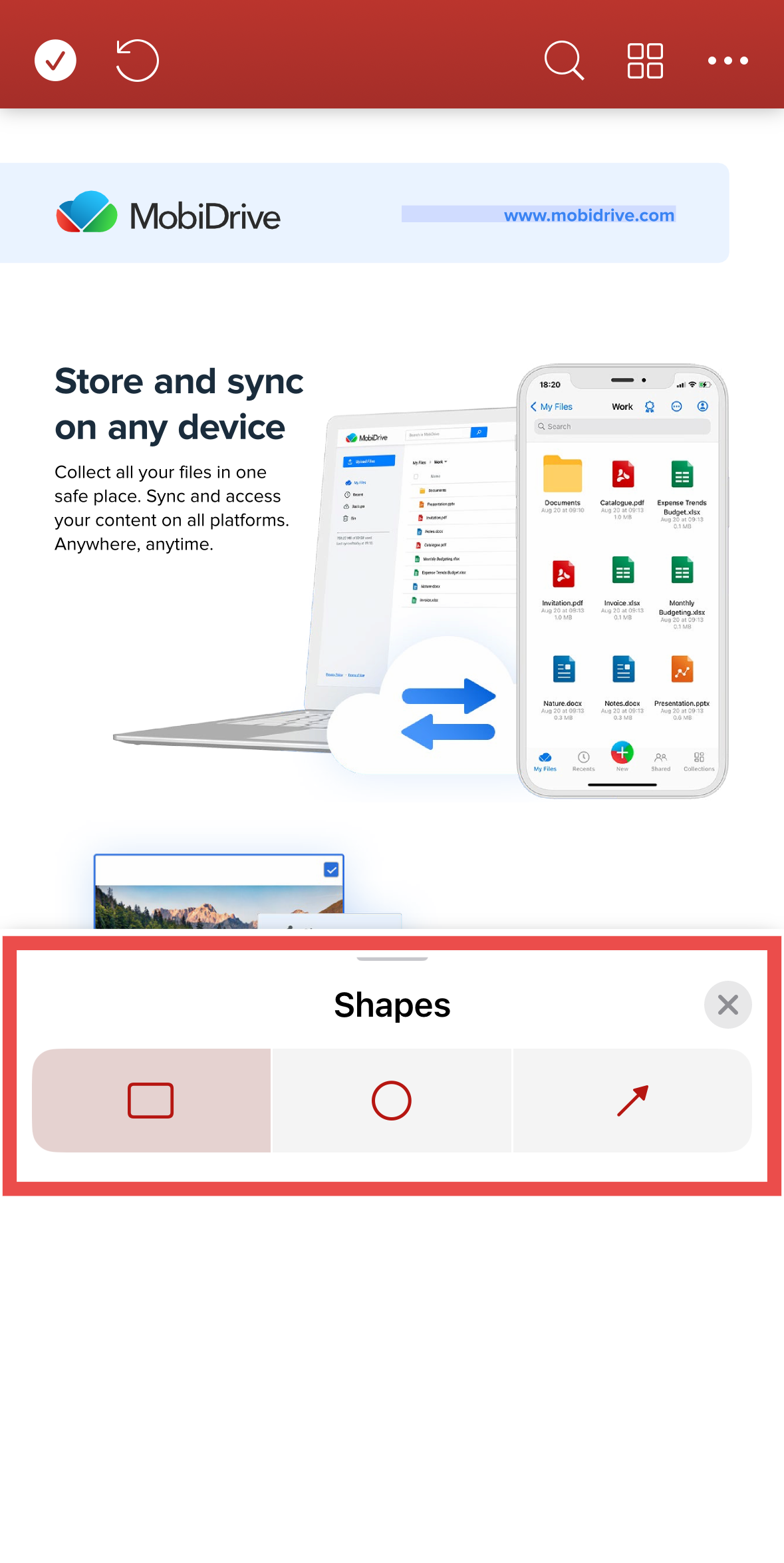

annotely_image (30).png         annotely_image (31).png

Optionally, use the Free draw tool to draw a custom shape.

3. Click where you want the shape inserted. Drag and drop to resize the shape.


4. Double tap the shape to type your comment in the associated pop-up note.

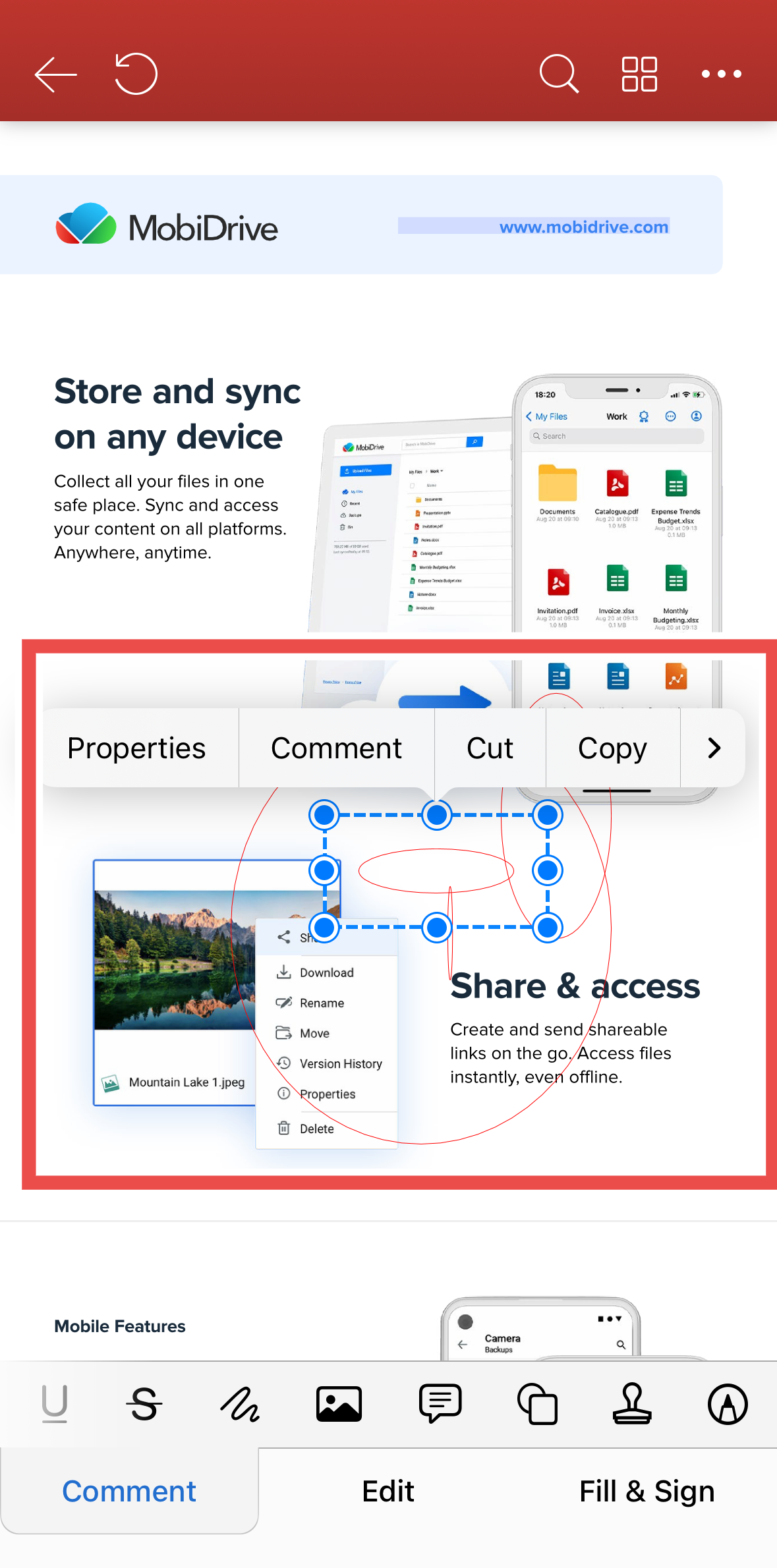

annotely_image (32).png

To add a Note

1. Open a PDF. Tap the Note icon.

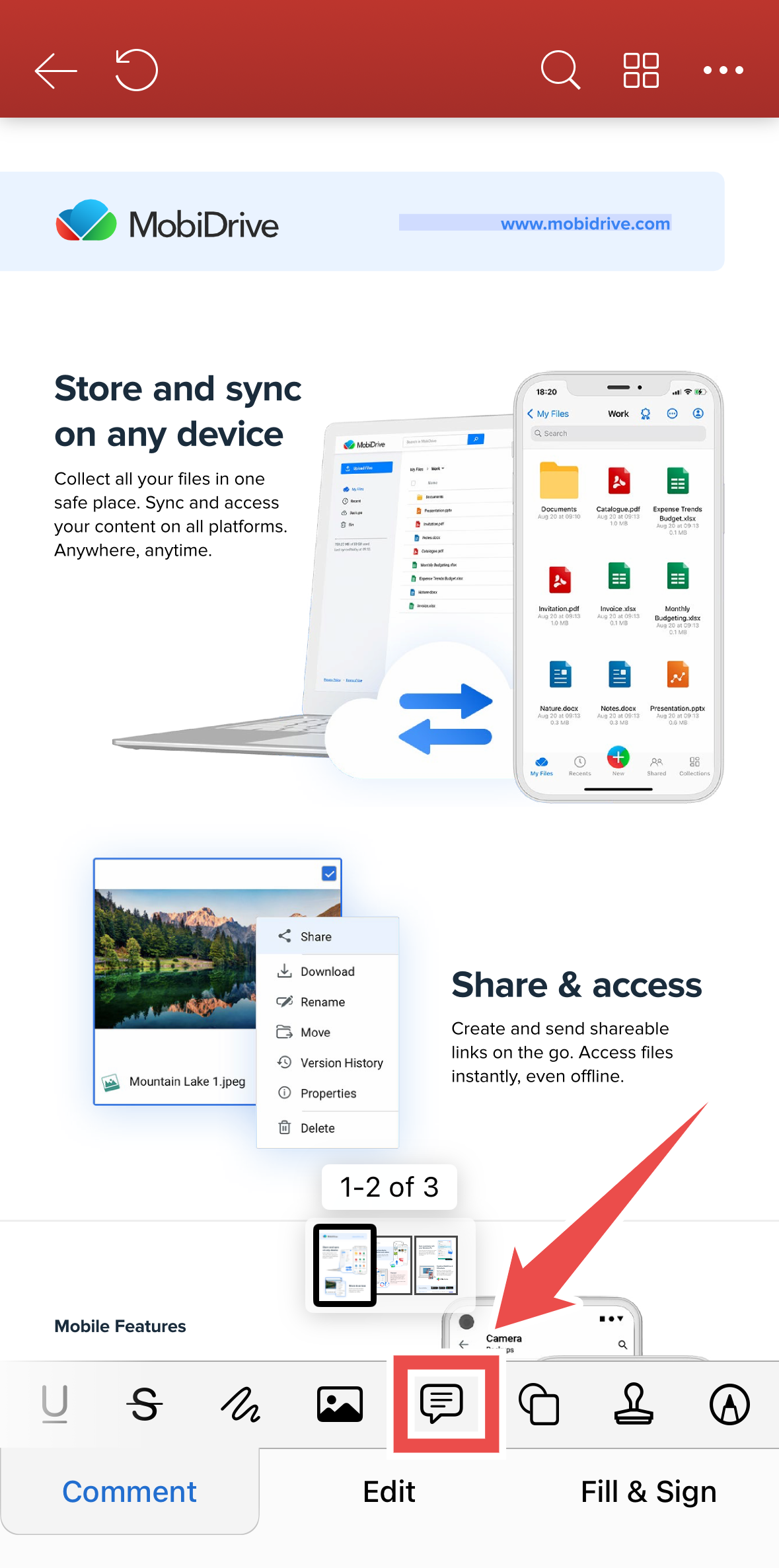

annotely_image (33).png

2. Click where you want the note inserted.

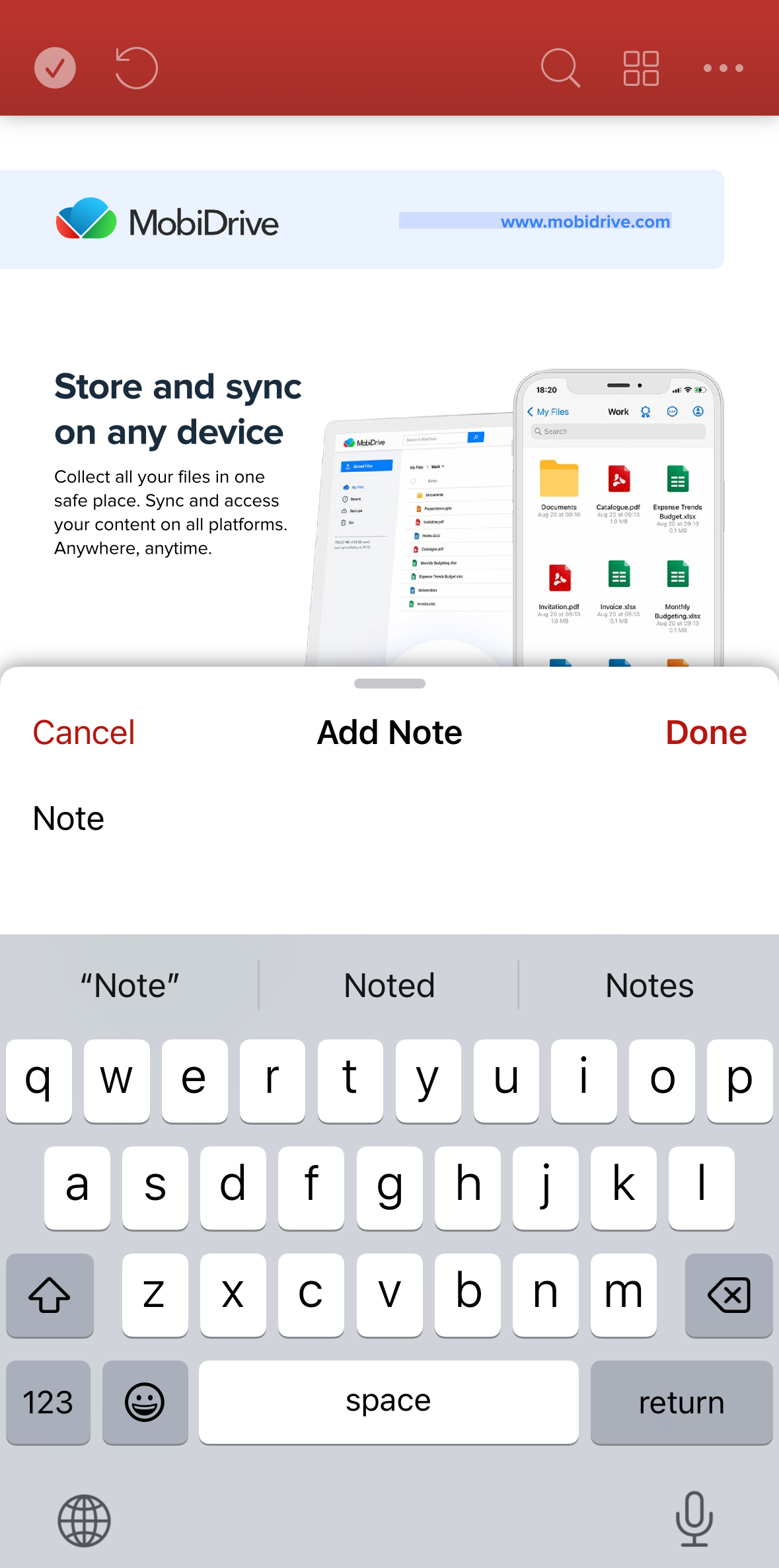

3. Type your comment in the associated pop-up note.
